#1
After a bit of searching and only coming up with some very expensive brass models, I decided to try my hand at scratchbuilding a NC&StL J3 4-8-4. I started with a Bachmann Overland northern that served as the donor for mechanism and tender trucks. The boiler is made of sheet aluminum from a drink can that's been formed around a series of styrene discs to get the correct diameter.

Early in the build process. rough shape of the boiler and tender are taking place


Boiler and cab fabricated. most of the details have been added at this point



Didn't quite have it done before we started taking the real thing apart, so I'll have to settle for this comparison with it on the left-rear drive rod


Finally got around to giving it a coat of paint



Still needs the cap painted red. Still not sure if i'll give it whitewalls.

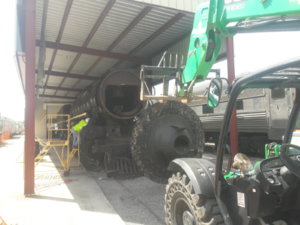

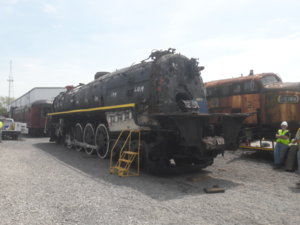

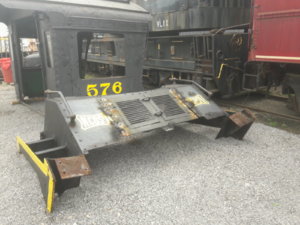

little bit of the real deal
20190417_122757.jpg 20190418_121637.jpg 20190423_140243.jpg

Last edited:
#5
Thanks for the kind words. For the most part I used super thin CA glue to hold parts to the aluminum, but some silicon RTV was used as well. This was my first all-out project like this. I sure learned a lot and had to re-make many of the parts, but now I can't wait to start on another build.

Last edited:
